Fully Redundant Battery Train
HIGH Energy Density
Proven Integration
Battery Energy Density, Price & Redundancy Drive Project Success
The turning point into this new technology:
- Affordable High Capacity battery to get range.
- Battery energy density to have lowest possible weight
- Fully redundant battery train
- Proven and reliable integration between the whole electrical system.
Battery Energy Density

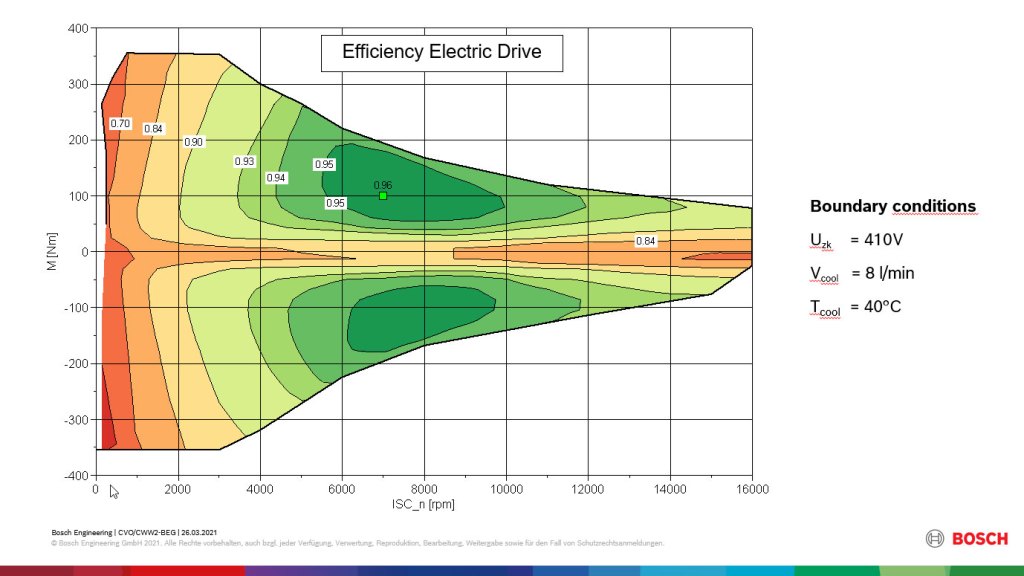

| Lithium Iron Phosphate | Mixed Metals NCM | Solid State (Lithium Iron Phosphate) | Solid State (NCM) |
|---|---|---|---|
| 345.6V 560Ah Lithium battery system | 365V 620Ah NCM Lithium | 337.92V 636Ah Solid State Lithium battery system | 408V 348Ah Solid State Lithium battery system |
| 193kWh | 226kWh | 215kWh | 142kWh (less capacity needed with less weight) |
| 125Wh/kg | 176Wh/kg | 230Wh/kg | 360Wh/kg |
| 1,545kg | 1,285kg | 934kg | 467kg |
| Selected Design |
| 6.5m Boat 142kWh Battery 120kW Drive | 6.5m Boat Outboard Engine and 300L Fuel Tank | |
|---|---|---|
| Aluminium Shell | 1100kgs Bare | 1500kgs finished |
| Non Electric Fitout | 250kgs | 300L Fuel 280kgs |
| Bosch Power | 100kgs | 275Hp Outboard |
| 4 people | 320kgs | 320kgs |
| Sub-total | 1,770kgs | 2100kgs |
| Battery | Solid State 142kwh - 470kgs | House Battery 80kgs |
| 2,240kgs | 2180kgs | |
| Estimated Range | Target range 100nm | 250nm range keeping some reserve |
| Target Weights | ICE Comparison |
Dont worry about number of cycles in life of Lithium battery:
- One Cycle is contiguous use to 100% battery capacity.
- Lets assume boat use every weekend of a year. That is 50 cycles a year if battery is used 100% on weekend.
- Target battery has 1500 cycle life. That’s 30 years at 50 a year. Your kids will inherit the battery.
Intercooled and Doubly Insulated Battery
Queensland made solid state battery:
Battery module case has integrated radiator jacket suitable for liquid cooling.
Each Battery module is double insulated and IP6k9K suitable for the wet hull of a boat.
Battery module has integrated copper heat transfer between the wafers to the integrated radiator jacket.
Each battery module is 400 x 300 x 250 and weighs 20kg.
Provisional Patent Applies on proprietary battery design.
Battery Wafers are Solid State NCM 360Wh/kg as supplied to EV manufacturers.
Nominal Voltage for each module is 38-63V with a comfortable 1C charge/discharge rate.
Each Battery Module will have an energy capacity of 5,644Wh.
Nominal design is 6 modules in series and 4 to 6 strings in parallel for a 400V system with range from 240V to 408V.
Each Battery Module has Cell Monitoring Unit which are connected to a single BMS.
BMS is European Automotive compliant to ASIL-D with all the approvals.
BMS Platform
The all in one ISO26262 ASIL D BMS platform ready to protect and extend battery life in automotive, marine and energy storage applications.
Automotive grade BMS platform with integrated insulation monitoring system, capable of managing batteries up to 1500V and with off-the-shelf 18s cell monitoring units. The system is ISO26262 ASIL D ready and includes EVITA HSM for ISO21434 cybersecurity standard.
Main features
- Cell chemistry agnostic BMS
- Up to 1500V battery systems
- Ready to use products for high voltage or low voltage applications
- Up to 63 daisy chain communicated BMU control
- Sleep mode enabling low power consumption
- Internal and external faults detection and reporting Error log for failure cause analysis and safe system recovery
- SoC, SoP, SoH battery diagnostics algorithms
- Configuration, calibration and software upgrade support
- ASIL D certified hardware (ISO 26262)
- Automotive grade compliant components
- Insulation monitoring system integrated

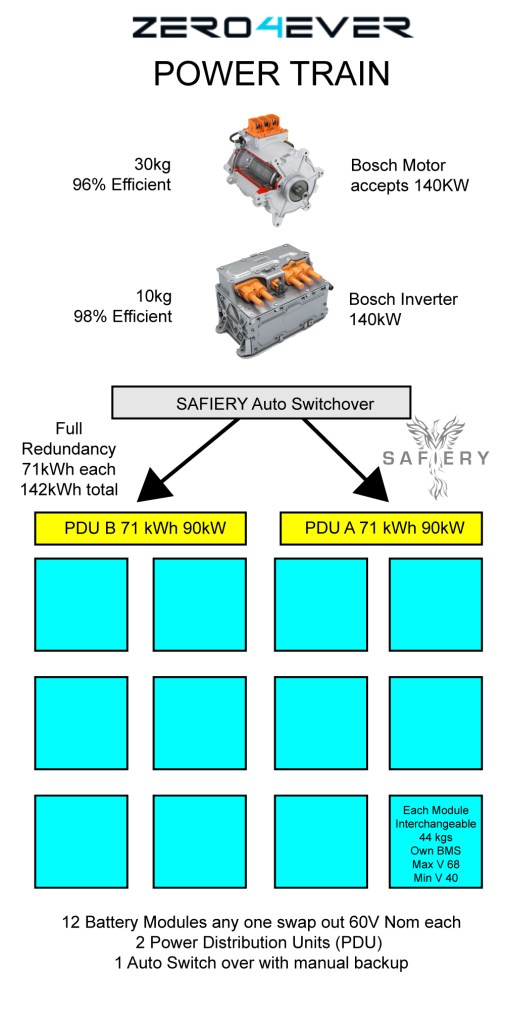

Fullly Redundant Battery Train
Full Redundancy
Complete Integration
